Tank Devices

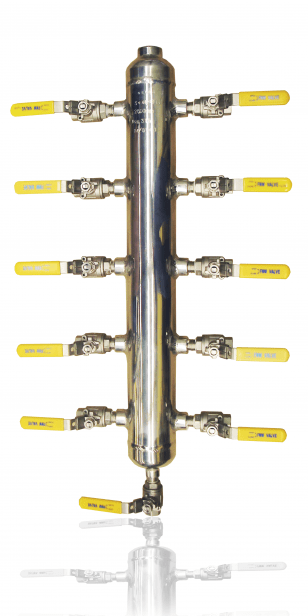

Air and Gas maninfolds

This tanks devices have condensate pots behaviour but with the difference of having more outputs for air or another kind of fluids. Most of the time came a combination of air&gas maninfolds with different ways to distribution of pressur- ized air and to operate with neumatic valves and diferent instruments or gauges.

BENEFITS

• They are specially design by customer request.
• All connections recives their maintenance and are deliv-

ered with special plastic protection.

FEATURES

Manufactured wrought carbon steel with wall thickness of: 40, 80 & 160. Wrought carbon steel caps with regula- tions ASME.

• MATERIALS:
Stainless steel AISI 304 & 316
Carbon steel ASTMA 106
Steel with regulation: NACE MR-0175

• PROCESS CONNECTION

1/4” NPTF & M class 3000# & 6000#

1/2” NPTF & M class 3000# & 6000#

3/4” NPTF & M class 3000# & 6000#

• STANDARD TESTS:

Hydrostatically of 5000 PSI(350 Kg/cm2) for class 3000#.

Hydrostatically of 9000 PSI(630 Kg/cm2) for class 6000#.

• OPTIONALS

Radiography test

Material toughness

Chemical composition

Liquid penetrant testing
